Product Details
STANDARD FEATURES
• Designed for breaking strength of wire with 90° wrap on sheave
• Cast Steel Sheave / Plate Machined Sheave with Hardened Rope Groove for Longer Life
• Sealed Grease Lubricated Tapered Roller Bearings in Sheave
• Weld Down Mounting Base
• Epoxy Primer Coating
OPTIONAL FEATURES
•Customized Design to suit your application
•Multiple Sheaves
•Stainless Steel or Nylon Sheaves
•Bolt down mounting base
•Load monitoring system
•Three Coat Marine Paint System
•Third party certification

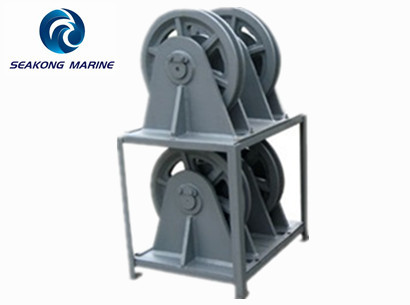

vertical roller fairlead

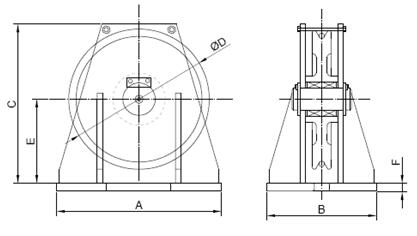

Wire Rope Dia. Sheave Dia.(mm) Dimensions (mm) SWL(KN) Weight (kg)
(mm) ( inch ) A B C E F
25 1 406 460 270 528 258 20 234 198
32 1-1/4 508 550 310 643 323 25 355 240
38 1-1/2 600 711 407 781 381 30 500 300
44 1-3/4 660 700 416 820 420 30 671 430
50 2 762 903 517 890 432 40 935 680
64 2-1/2 914 940 560 1120 580 40 1414 1050
