Product Details

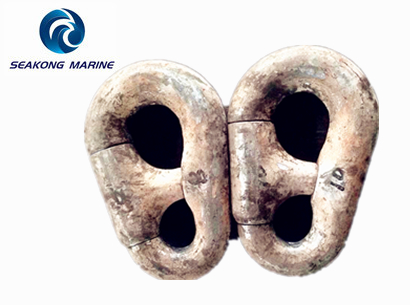

Pear Shackle
Made from heavy duty high strength forged steel, the Pear Shackles(also known as Pear Shape Anchor Connecting Link )  is a demountable type shackle used for connecting the link to the anchor shackle.
This type shackles are widely used in Chain Chasing Operation,Piggyback Mooring System or other mooring system.
Qingdao Seakong Marine Machinery Co.,Ltd supplies a wide range of Pear Shackles to variety of sizes. Note that our shackles are supplied subject to a nominal variation in weights and dimensions.

STANDARD FEATURES
· made from high strength forged steel,suitable for U3,ORQ,R3,R4 grade chain
· Size: No.3~No.11,for chain diameter 25mm to 108mm
· used in the marine industry or offshore industry
· stainless steel tapper pin
· supplied as ex-stock item
OPTIONAL FEATURES
· breaking load test on your requirement
· classification society 3rd party inspection

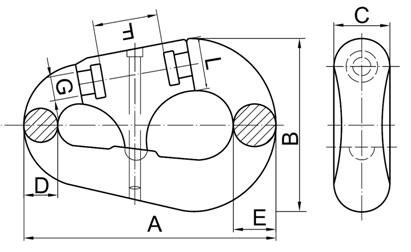

No Chain size (mm)        A          (mm)     B               (mm) C                 (mm) D                   (mm) E                       (mm) F                   (mm) G                     (mm) H                     (mm) J                   (mm) K                 (mm) Weight
( kg)
4 32-34 298 206 59 40 48 83 40 x 44 56 26 43 13
5 42-51 378 260 76 51 64 100 51 x 60 74 32 52 27
6 52-60 454 313 92 60 76 121 62 x 73 88 37 64 49
7 62-79 562 376 117 79 95 149 85 x 79 111 48 76 94
8 81-92 654 419 133 92 124 149 111 x 102 130 x 133 54 79 149
9 94-95 692 435 146 98 130 159 124 x 137 141 57 83 236
10 97-102 889 571 190 121 165 190 130 181 73 108 386
