Product Details
Smit Brackets

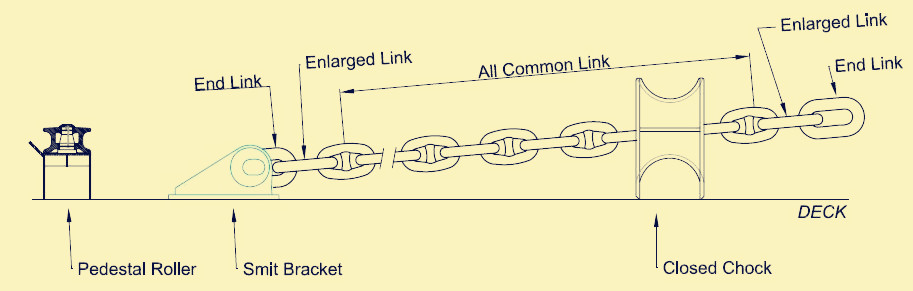

The simt brackets (also known as Towing Brackets or Mooring Brackets) are welded on the aftdeck, connected with end link or pear shape link of chafe chain for towing purposes.
We select finest quality material to manufacture towing brackets which can work to 500T SWL max. and suit to chain dia. up to 132mm.
We have developed towing brackets for -40℃ & -60 ℃ working working temperature, manufacture by using high strength low alloy structural steel.
Our all welding works are done by ABS qualified welders and all welding procedure is in accordance to DNV&ABS approved WPS.
All weld joints are inspected by level III NDT engineer
Our towing brackets can be supplied with class cert such as ABS, BV, DNV, LR, CCS,RMRS,RINA.
Underdeck stiffening is on request.

STANDARD FEATURES
• Standard: OCIMF,JISF2029
• Size: Max. SWL500T
• Usage: for towing and emergency towing
• Designed for grade 3 chafe chain
• MBL/SWL=2:1
• High strength forging alloy steel pin, high garde base
SWL100T, SWL200T are type approved by ABS/BV
• Epoxy Primer Coating
OPTIONAL FEATURES
• Can be designed for R3,ORQ or R4 mooring chains
• Can be designed for -40℃ and -60℃ working temperature
• Paint on your request
• IACS cert

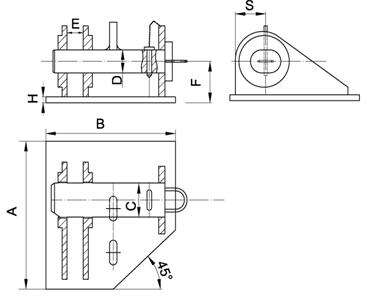

ocimf towing bracket dimensions
Nominal Dia.
(mm)
A B C D E F S H SWL
(KN)
MBL
(KN)
Weight (Kg)
40 415 370 88 58 60 116 85 16 500 1000 58
44 420 370 90 58 60 118 85 18 550 1100 76
48 495 465 100 60 70 140 90 20 600 1200 94
52 535 485 110 70 80 150 100 20 750 1500 106
54 555 500 118 78 80 160 110 25 1000 2000 118
60 600 535 124 84 85 175 120 25 1250 2500 146
64 625 600 138 92 100 180 138 25 1500 3000 184
68 700 650 150 92 100 213 160 28 1740 3480 226
73 750 675 160 102 100 218 160 28 1850 3700 298
76 800 720 170 110 112 230 170 30 2000 4000 312
84 830 770 180 118 120 245 180 35 2250 4500 446
90 900 880 190 124 130 255 190 35 2500 5000 588
95 1120 940 195 135 170 290 195 40 2750 5500 751
102 1120 940 216 144 170 305 225 45 3000 6000 886
120 1180 1100 250 162 170 340 250 50 3500 7000 1180
132 1300 1170 276 182 180 380 275 55 4000 8000 1550

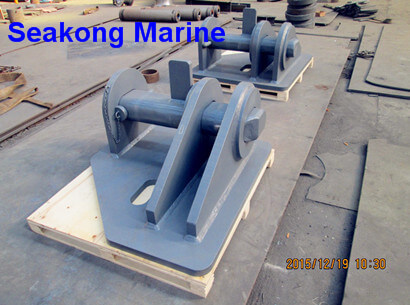

china smit brackets supplier

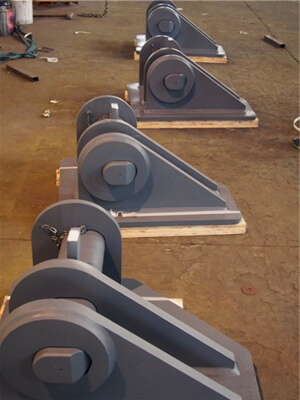

4 PCS SWL200T Ocimf Type Smit Brackets c/w DNV Certificates

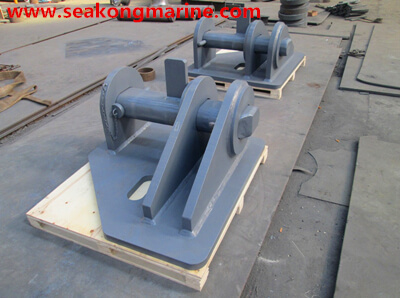

2 PCS SWL350T Ocimf Type Smit Brackets c/w ABS Certificates
